⚙️ End Suction Centrifugal Pumps
Explore our full range of End Suction Centrifugal Pumps, engineered for reliability across industrial, chemical, water, and process applications. Select a model below to view detailed specifications, features, and applications.
⚙️ 2196 ANSI
🔑 Key Features
- ANSI B73.1 dimensional standard
- Back pull-out design for easy maintenance
- Wide range of materials of construction
- Interchangeable with other ANSI pumps
🏭 Applications
- Chemical processing
- General industrial liquid transfer
- Water & wastewater treatment
⚙️ 2196 LF ANSI
🔑 Key Features
- Low-flow ANSI design
- High efficiency at reduced flow rates
- Back pull-out for simplified servicing
🏭 Applications
- Low-flow chemical dosing
- Process industries requiring precise low flows
⚙️ 2196R
🔑 Key Features
- Reverse circulation / recessed impeller design
- Handles solids and abrasive slurries
- Minimal clogging design
🏭 Applications
- Slurry and solids-laden fluids
- Mining and mineral processing
- Wastewater with solids content
⚙️ 2175 — Heavy-Duty Slurry & Solids Handling Pump
The 2175 is a heavy-duty centrifugal pump engineered for abrasive, slurry-laden, and solids-heavy applications. With a rear pull-out design, sacrificial wear components, and a reinforced double wall volute on larger sizes, it's built to withstand harsh process conditions while minimizing maintenance costs and downtime.
🔑 Key Features
- 🔧 Rear Pull-Out Design
- 🔄 Efficient Interchangeable Parts
- 🛡️ Sacrificial Wear Items
- 🏗️ Double Wall Volute on Larger Sizes
🏭 Applications
- Pulp & Paper: Cleaners, Filtrate, Liquor, Screen Reject
- Steel: Cooling Water, Descaling, Slurries, Tailings
- Food: Beet and Cane Sugar, Cane Juices, Fruit Pulp, Wet Corn Millings
- General: Manure Transfer, Mine Water, Waste Treatment
| Parameter | Value |
|---|---|
| Design | Rear Pull-Out |
| Wear Protection | Sacrificial Wear Items |
| Volute Reinforcement | Double Wall (Larger Sizes) |
| Key Benefit | Abrasion & Slurry Resistance |
⚙️ CC & FM — Close Coupled & Frame Mounted Pumps
The CC & FM range offers compact, space-saving pump solutions available in both close coupled and frame mounted configurations. Designed with a split casing for easy maintenance and sacrificial wear components for extended service life, these pumps are ideal for clean, light-duty industrial fluid transfer applications.
🔑 Key Features
- 💧 Capacities up to 2 300 GPM (≈ 522 m³/h)
- 📏 Heads up to 440 ft (≈ 134 m)
- 📐 Minimal Space Footprint
- 🔄 Interchangeable Parts
- 🧩 Split Casing Design
- 🛡️ Sacrificial Sleeves and Rings
🏭 Applications
- 💧 Clean Water
- 🧪 Solvents
- 🛢️ Light Oils
- ⚗️ Non-Corrosive Chemicals
- ❄️ Coolants
- 🧂 Brines
| Parameter | Value |
|---|---|
| Max Capacity | 2 300 GPM (≈ 522 m³/h) |
| Max Head | 440 ft (≈ 134 m) |
| Design | Split Casing |
| Configuration | Close Coupled (CC) / Frame Mounted (FM) |
| Wear Protection | Sacrificial Sleeves & Rings |

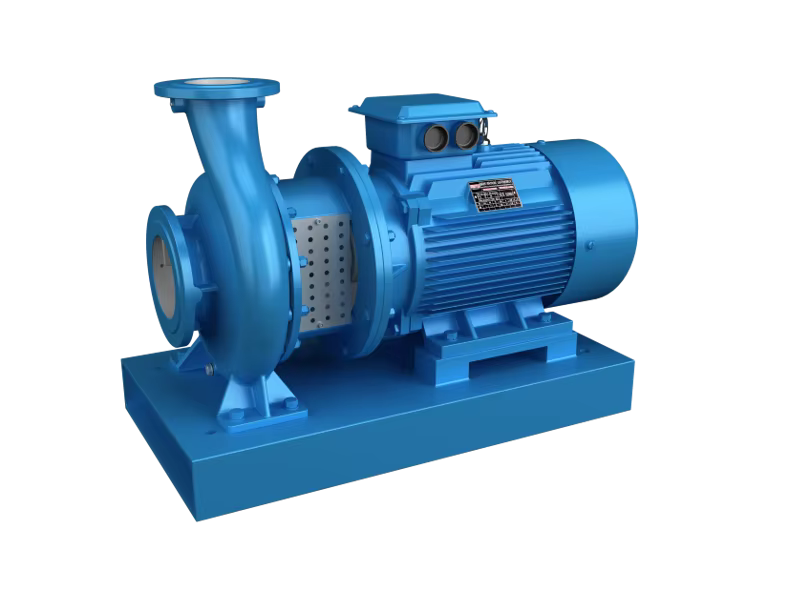

⚙️ DIN 24255/EN733 — Standard End Suction Centrifugal Pump
The DIN Standard End Suction Centrifugal Pump is designed for reliable, efficient, and versatile liquid handling across a wide range of industrial, commercial, and water management applications. With a flow capacity of 36.3–400 m³/h and a head range of 5–125 m, it provides flexible performance to meet varying system requirements.
Available in both Frame Mounted and Close Coupled configurations, with flexible sealing options to suit different operating conditions.
🔑 Key Features
- 📈 Wide Performance Range: 36.3–400 m³/h; heads 5–125 m
- 📐 DIN Standard Design for compatible system integration
- ⚡ High Hydraulic Efficiency
- 🔧 Flexible Sealing Options (single/double mechanical seal or gland packing)
- 🛡️ Robust Construction
- 🔄 Easy Maintenance
- 🏗️ Versatile Installation
- ⏱️ Continuous-Duty Capability
🔩 Shaft Sealing Options
| Sealing Type | Description |
|---|---|
| Single Mechanical Seal | Reliable, low-maintenance solution for general-purpose applications |
| Double Mechanical Seal | Enhanced leakage control for demanding duties |
| Gland Packing | Traditional, economical option |
🏭 Applications
- 🚰 Water Supply and Distribution
- 🌡️ HVAC Systems
- 🏭 Industrial Processes
- 🔼 Booster Pumping Systems
- 🌾 Irrigation and Agriculture
- ❄️ Cooling Water Systems
- 🏗️ General Industrial Water Transfer
- ⚗️ Process Liquid Handling
| Parameter | Value |
|---|---|
| Flow Capacity | 36.3 – 400 m³/h |
| Head Range | 5 – 125 m |
| Design Standard | DIN 24255 / EN733 |
| Configuration | Frame Mounted / Close Coupled |
| Sealing Options | Single Mechanical / Double Mechanical / Gland Packing |
📊 Model Comparison
| Model | Design Type | Best For |
|---|---|---|
| 2196 ANSI | ANSI B73.1 | Chemical & industrial transfer |
| 2196 LF ANSI | ANSI Low-Flow | Precise low-flow dosing |
| 2196R | Recessed Impeller | Solids & slurry handling |
| 2175 | Rear Pull-Out | Abrasive slurries, pulp & paper, steel |
| CC & FM | Split Casing | Clean water, solvents, light oils |
| DIN 24255/EN733 | DIN Standard (FM/CC) | Water supply, HVAC, irrigation |
💬 Need Help Selecting the Right Pump?
Our team can help you choose the ideal End Suction Centrifugal Pump for your application.
📞 Contact Us Today
